1. Support recording DMX512 performance data
2. Support simultaneous playback of multiple programs
3. Support MIDI time code departure playback
4. Support RS/485 serial port command for starting and playing
5. Support UDP port command triggered playback
6. Support control panel triggering playback

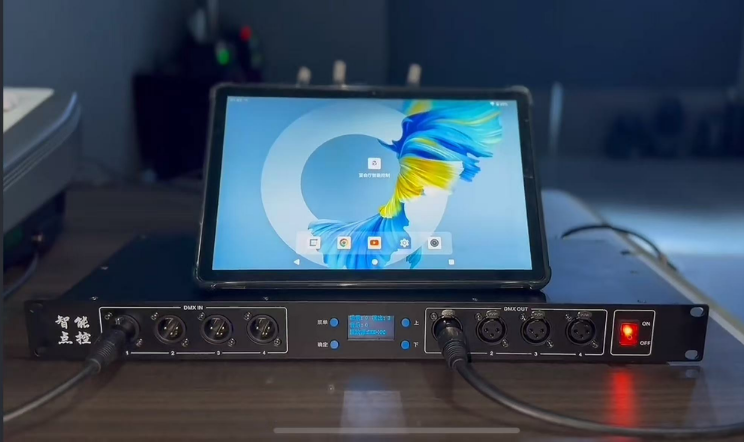

7. The front panel has various control mode status and decoding status indicator lights
8. The system supports fully automatic master-slave backup
9. Support remote web devices, operations, and management
10. The machine comes with 4 x DMX512 output ports
11. Each DMX512 port has a 2500V optoelectronic isolation interface
12. Wide voltage design, working power supply AC110-VAC220V (± 10%)
13.1U rack mounted installation
14. The lighting console DMX input is used to record and save music in real-time in conjunction with the card. When replaying, it can achieve sound and light synchronization controller output or console output, and can switch music players with one click (supporting MAV format, MP3 format). It also supports user-defined music files
15. Supports recording, saving, and replaying up to 99 programs. Some models can be used in conjunction with the central control system to achieve integrated control and support dual development
16. Can be used as a backup device for computer light control panel or computer software control panel
17. Fully automatic unmanned playback of music and synchronized control of lighting
18. Power supply: 110-220V AC 50-60Hz
19. Interface: 4 × 3-pin XLR (F) DMX signal output socket
20. Storage: 32GB USB flash drive
